Features
Anti-scald
with double water-compartment tank
Built-in
Electronic ELCB with
surge protector
Safety
thermal cut-out
Splashproof
casing construction
Operates
under low and normal water pressures
5 years
warranty on heating element
Guaranteed
after-sales service
|
 |
 SP MODEL (with pump)
Technical Specification :
|
Model :
|

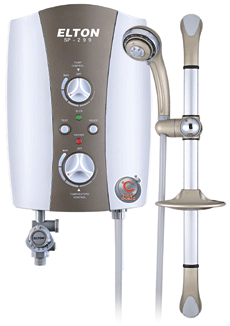

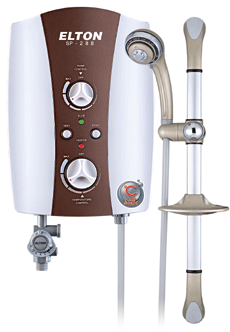

SP-288 / SP-299
|
SS-222 / SS-233
|
SS-123 |
EL-113
|
| Electrical
Loading |
3.6kW
15A. 240V AC, 50 Hz |
3.6kW
15A. 240V AC, 50Hz |
3.6kW 15A, 240V AC, 50Hz |
3.3kW
240V AC, 50Hz |
| ELCB
Sensitivity |
15mA |
15mA |
15mA |
15mA |
| Min.
Operating Water Flow |
2
Litre/min |
2
Litre/min |
2 Litre/min |
1
Litre/min |
| Min.
Water Pressure |
0.1
Bar (1.5 psi) |
0.1
Bar (1.5 psi) |
0.1 Bar (1.5 psi) |
0.14
Bar (2 psi) |
| Max.
Water Pressure |
3.5
Bar (50 psi) |
3.5
Bar (50 psi) |
3.5 Bar (50 psi) |
3.8
Bar (55 psi) |
| Water
Connection |
15mm
dia. (1/2" BSP) |
15mm
dia. (1/2" BSP) |
15mm dia. (1/2" BSP) |
15mm
dia. (1/2" BSP) |
| Dimension |
350mm
(W) x 248mm (L) x 118mm (D) |
350mm
(W) x 248mm (L) x 118mm (D) |
350mm(W) x 248mm (L) x 118mm (D) |
180mm
(W) x 255mm (L) x 95mm (D) |
| Weight |
4
Kg |
3
Kg |
3 Kg |
2.7
Kg |
| Shower
Head |
Steamlike,
Normal, Massage, Comfortable, Combined |
Steamlike,
Normal, Massage, Comfortable, Combined |
Normal, Massage, Combined |
Normal
Spray |
| Temperature
Selection |
Rotary
Electronic Stepless Selector |
Rotary
Electronic Stepless Selector |
Rotary Electronic Stepless Selector |
Rotary
Electronic Stepless Selectror |
| Pump
Speed |
Rotary
Electronic Stepless Selector |
NA |
NA |
NA |
| Pump
Rating |
120W
240V AC |
NA |
NA |
NA |
Multiple Shower :

|
