Features
Anti-scald
with double water-compartment tank
Built-in
Electronic ELCB with surge protector
Safety
thermal cut-out
Splashproof
casing construction
Operates
under low and normal water pressures
5 years
warranty on heating element
Guaranteed
after-sales service
|
 |

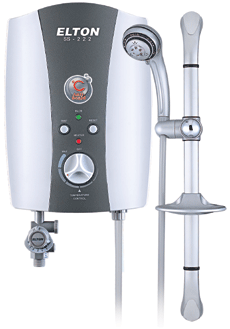

 SS MODEL
Technical Specification :
|
Model :
|
SP-288 / SP-299
|
SS-222 / SS-233
|
SS-123 |
EL-113
|
|
Electrical Loading |
3.6kW 15A. 240V AC, 50 Hz |
3.6kW 15A. 240V AC, 50Hz |
3.6kW 15A, 240V AC, 50Hz |
3.3kW 240V AC, 50Hz |
|
ELCB Sensitivity |
15mA |
15mA |
15mA |
15mA |
|
Min. Operating Water Flow |
2 Litre/min |
2 Litre/min |
2 Litre/min |
1 Litre/min |
|
Min. Water Pressure |
0.1 Bar (1.5 psi) |
0.1 Bar (1.5 psi) |
0.1 Bar (1.5 psi) |
0.14 Bar (2 psi) |
|
Max. Water Pressure |
3.5 Bar (50 psi) |
3.5 Bar (50 psi) |
3.5 Bar (50 psi) |
3.8 Bar (55 psi) |
|
Water Connection |
15mm dia. (1/2" BSP) |
15mm dia. (1/2" BSP) |
15mm dia. (1/2" BSP) |
15mm dia. (1/2" BSP) |
|
Dimension |
350mm (W) x 248mm (L) x 118mm (D) |
350mm (W) x 248mm (L) x 118mm (D) |
350mm(W) x 248mm (L) x 118mm (D) |
180mm (W) x 255mm (L) x 95mm (D) |
|
Weight |
4 Kg |
3 Kg |
3 Kg |
2.7 Kg |
|
Shower Head |
Steamlike, Normal, Massage, Comfortable, Combined |
Steamlike, Normal, Massage, Comfortable, Combined |
Normal, Massage, Combined |
Normal Spray |
|
Temperature Selection |
Rotary Electronic Stepless Selector |
Rotary Electronic Stepless Selector |
Rotary Electronic Stepless Selector |
Rotary Electronic Stepless Selectror |
|
Pump Speed |
Rotary Electronic Stepless Selector |
NA |
NA |
NA |
|
Pump Rating |
120W 240V AC |
NA |
NA |
NA |
Multiple Shower :

|
